Product Description

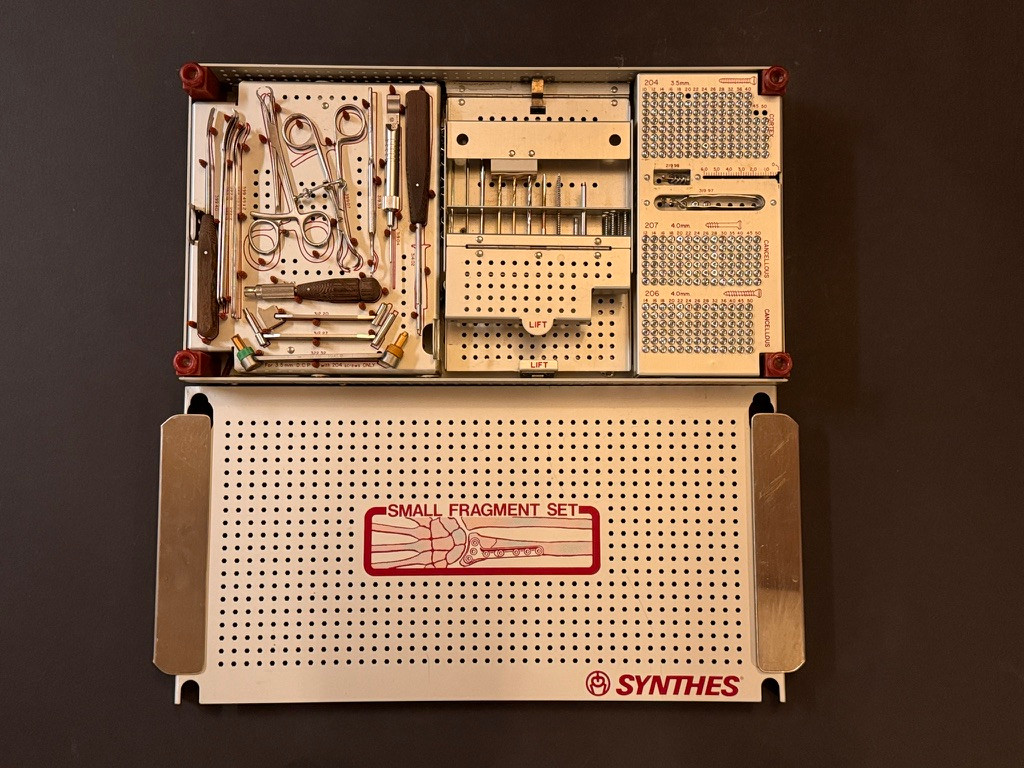

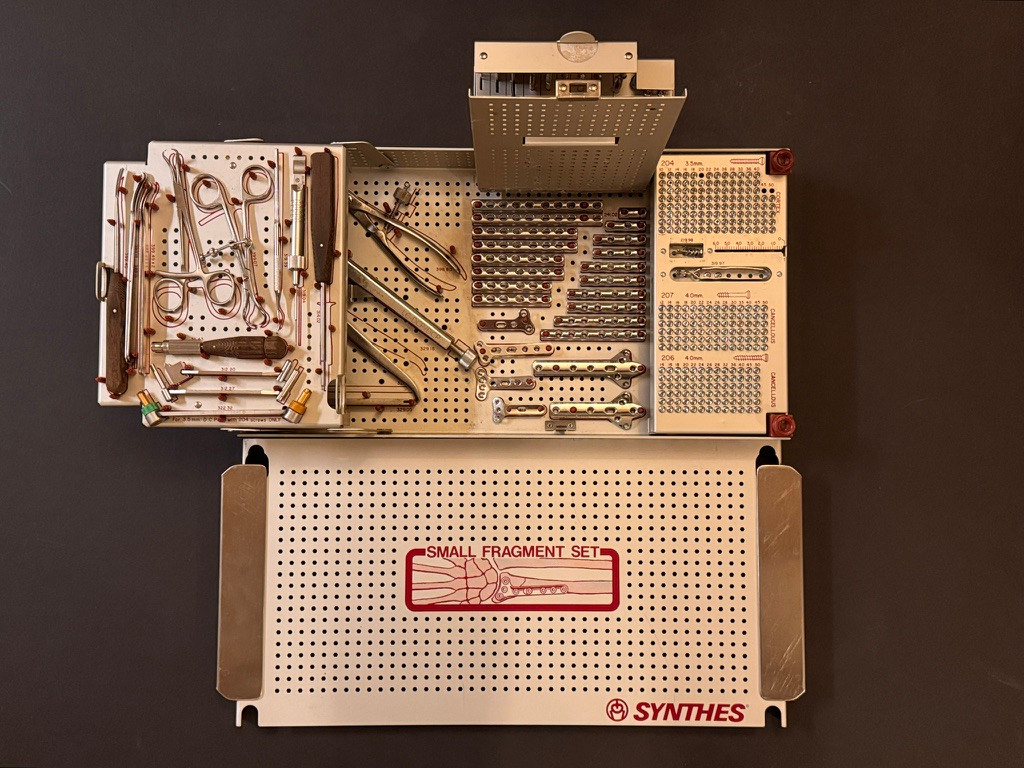

Synthes 105.408 Small Fragment Instrument and Implant Set
INSTRUMENTS INCLUDED
310.25 2.5 mm Drill Bit, quick coupling, 110mm, gold, 4 ea.
310.35 3.5 mm Drill Bit, quick coupling, 110mm, 2 ea.
310.89 Countersink, for 3.5mm Cortex and 4.0mm Cancellous Bone Screws
311.32 Tap for 3.5mm Cortex and 3.5 mm Shaft Screws, 110mm, gold, 2 ea.
311.34 Tap for 4.0mm Cancellous Bone Screws, 110 mm, 2 ea.
311.43 Handle, with quick coupling
312.20 2.0mm Parallel Drill Guide and Drill Sleeve
312.27 3.5mm/2.5mm Double Drill Sleeve
312.30 3.5mm/2.5mm Insert Drill Sleeve
314.02 Small Hexagonal Screwdriver with Holding Sleeve
314.03 Small Hexagonal Screwdriver Shaft
319.04 Depth Gauge, for 2.7mm and 3.5mm Cortex and 4.0mm Cancellous Bone Screws
319.39 Sharp Hook
319.97 Screw Forceps
322.32 3.5mm DCP Drill Guide, neutral and load
329.04 Bending Iron, for 2.7mm and 3.5mm plates
329.05 Bending Iron, for 2.7mm and 3.5mm plates
329.15 Plate Bending Pliers
329.55 Bending Template, 5 holes
329.57 Bending Template, 7 holes
398.80 Self-Centering Bone Forceps, size 0, extra small serrated jaw, 10mm
399.18 Hohmann Retractor, 6mm width
399.19 Hohmann Retractor, 8mm width
399.40 Periosteal Elevator, 6mm width, curved blade, straight edge
399.49 Hohmann Retractor, 15mm width, 2 ea.
399.07 Reduction Forceps, with points, 130mm length, ratchet
71170051 Reduction Forceps, with serrated jaw, 135mm length, ratchet

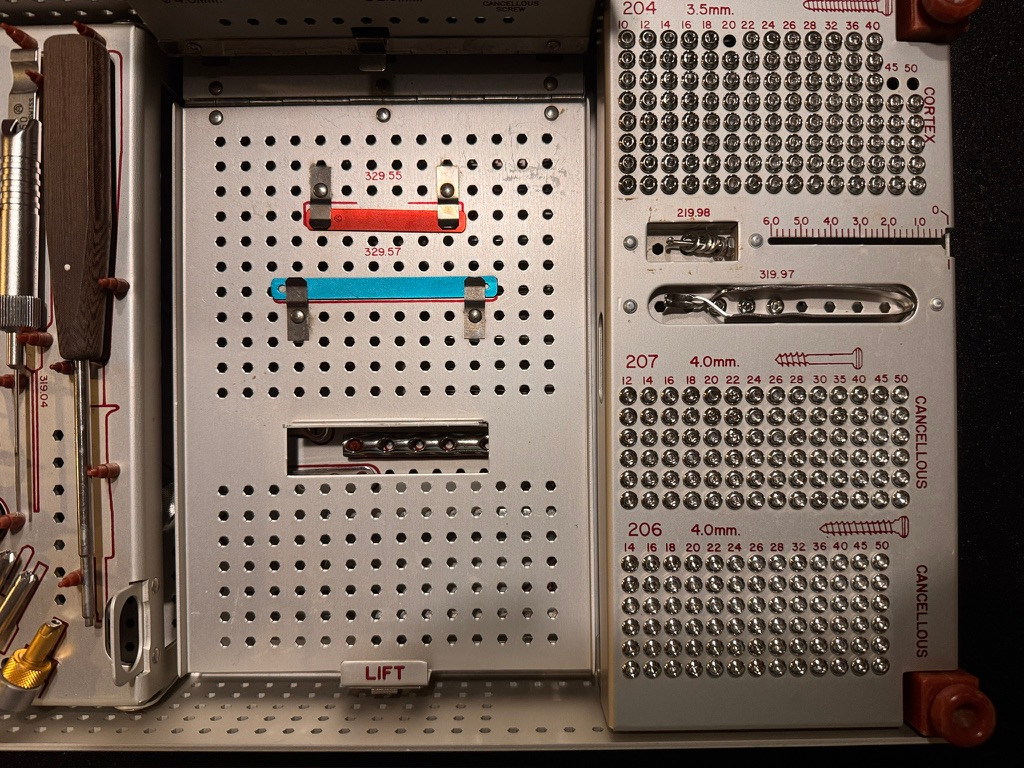

IMPLANTS INCLUDED / Non-Self Tapping Screws
204 3.5mm Cortex Screws 8 ea.: 10, 12, 14, 16, 18, 7, 20, 22, 24, 26, 28, 32, 36 and 40mm; 6 ea.: 45mm and 4 ea 50mm
206 4.0mm Cancellous Bone Screws, fully threaded 6 ea.: 14, 16, 18, 20, 22, 24, 26, 28, 32, 36, 40, 45 and 50mm; 4 ea.: 55mm and 60mm
207 4.0mm Cancellous Bone Screws, partially threaded 6 ea.: 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 35, 40, 45 and 50mm
219.98 Washer, 7.0mm, 4 ea.
241.32 - 241.38 One-Third Tubular Plates w/ collar 1 ea.: 2, 3, 7 and 8 holes; 1 ea.: 4, 5 and 6 holes
241.13 3.5mm T-Plate, 3 holes shaft, 3 holes head, right angle
241.14 3.5mm T-Plate, 4 holes shaft, 4 holes head, right angle
241.23 3.5mm T-Plate, 3 holes shaft, 3 holes head, oblique angle
241.25 3.5mm T-Plate, 5 holes shaft, 3 holes head, oblique angle
241.83 Cloverleaf Plate, thin blade, 3 holes
241.84 Cloverleaf Plate, thin blade, 4 holes
248.06 - 248.10 3.5mm DCP Plates 6, 7, 8 and 10 holes
Kirschner Wires, 1.5mm 3 ea
Kirschner Wires, 1.6mm 5 ea
Kirschner Wires, 2.0mm 7 ea
Mechanical Condition: Good
Cosmetic Condition: Good
Warranty: 6 Months (Covers OEM Defects)
“The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.”
