Product Description

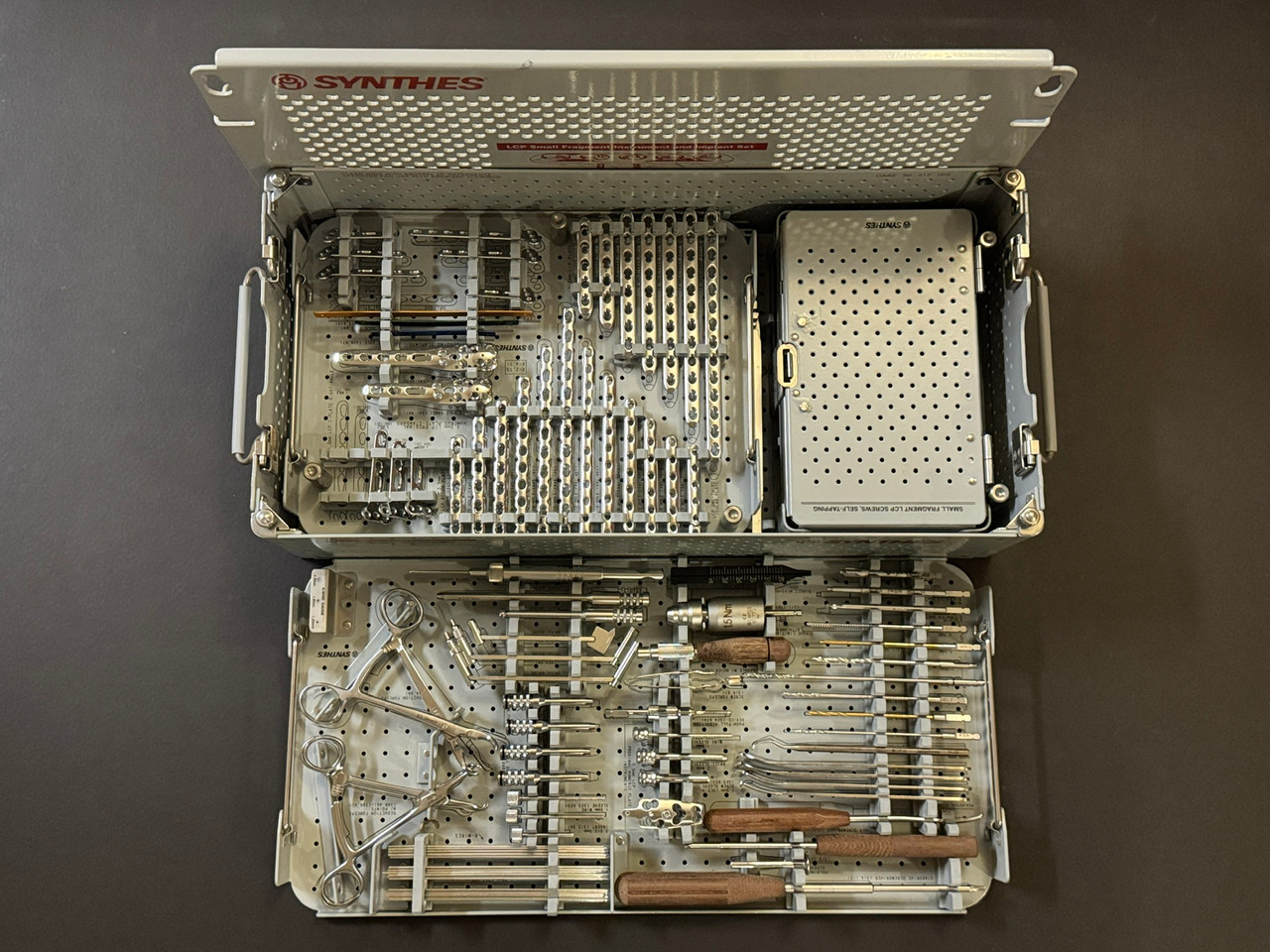

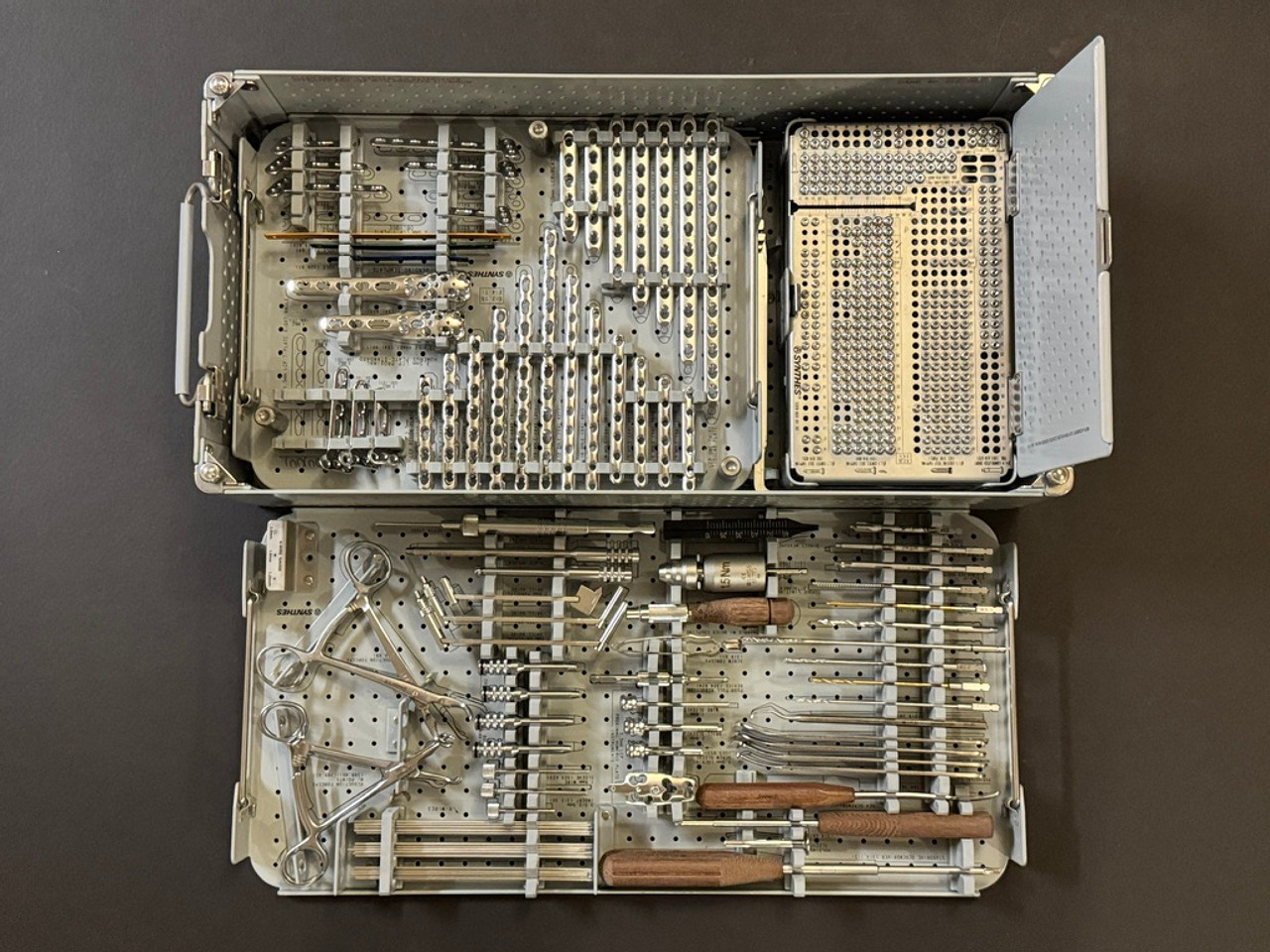

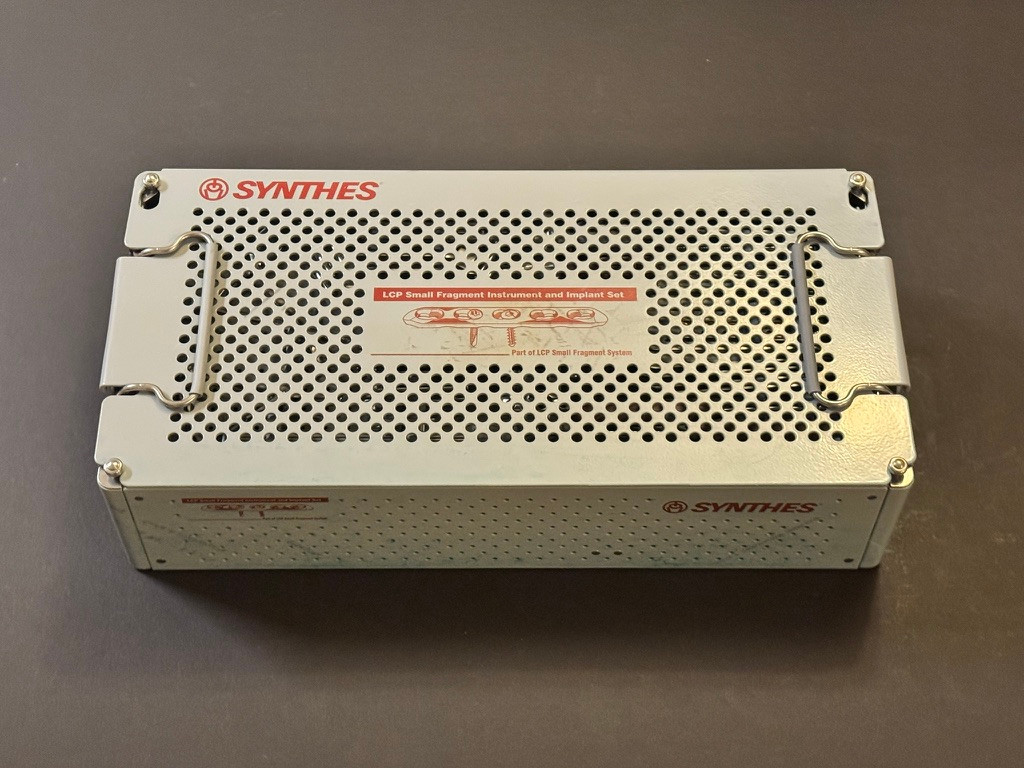

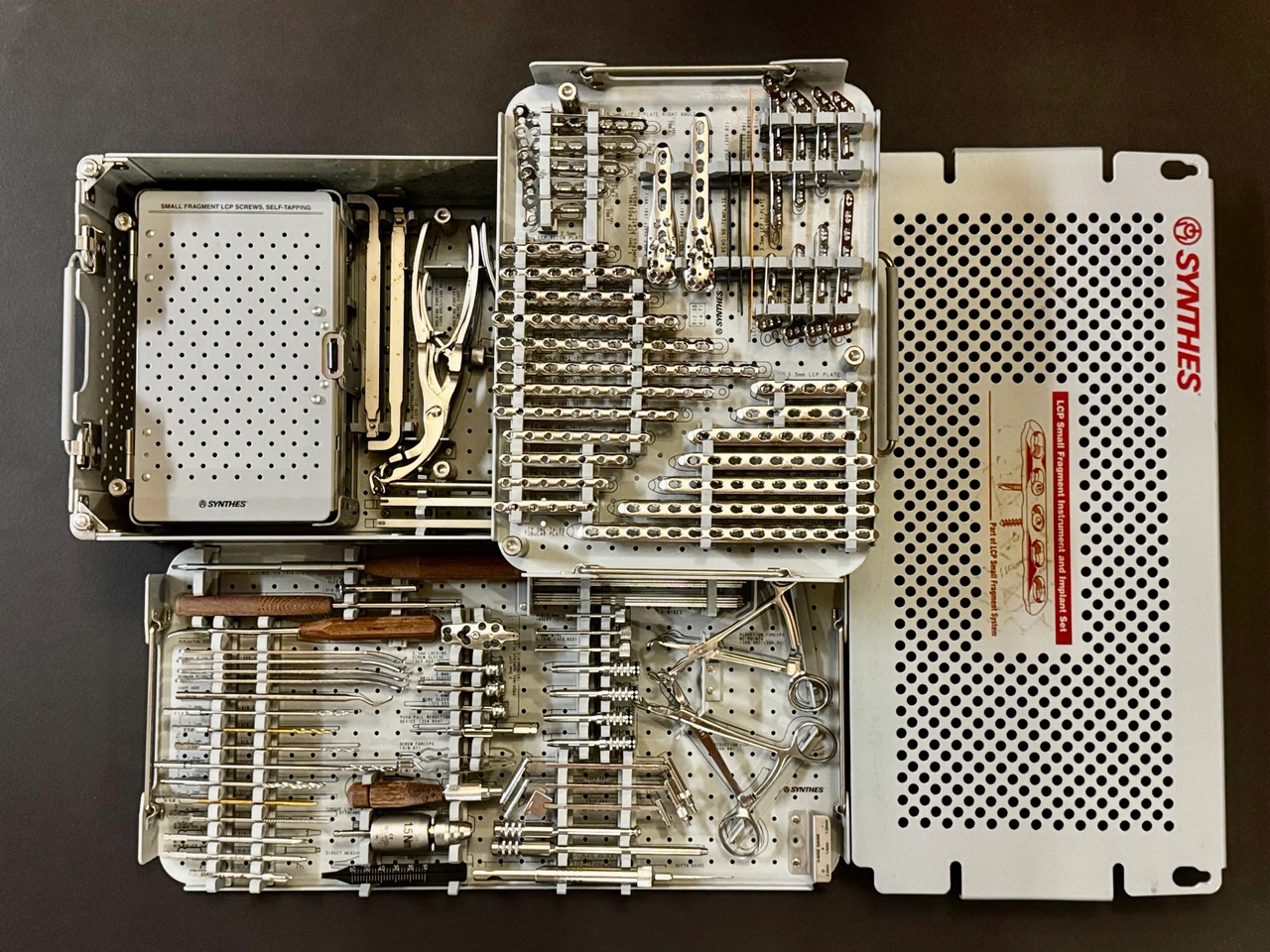

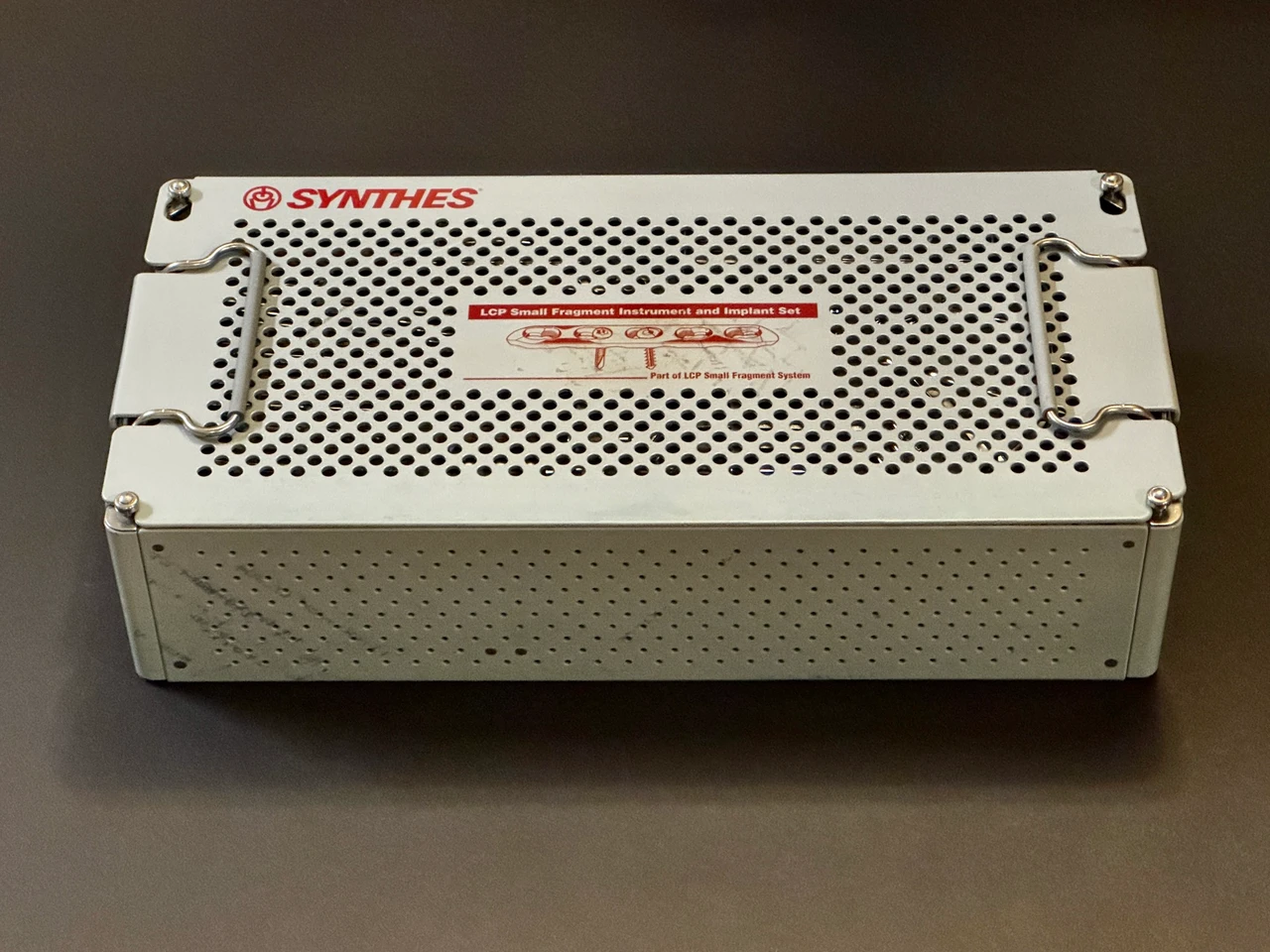

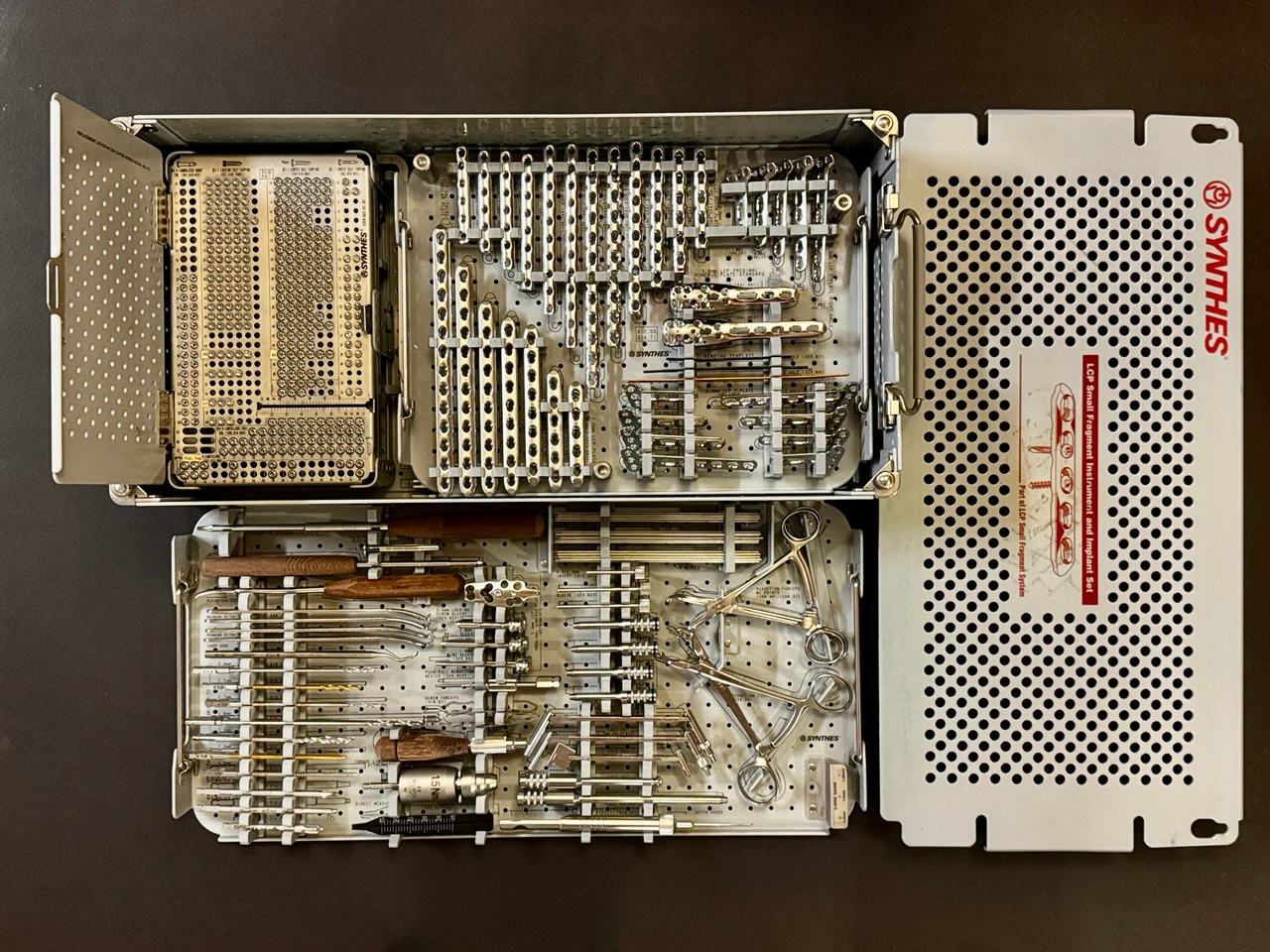

Synthes 105.434 LCP Locking Small Fragment Instrument and Implant Set

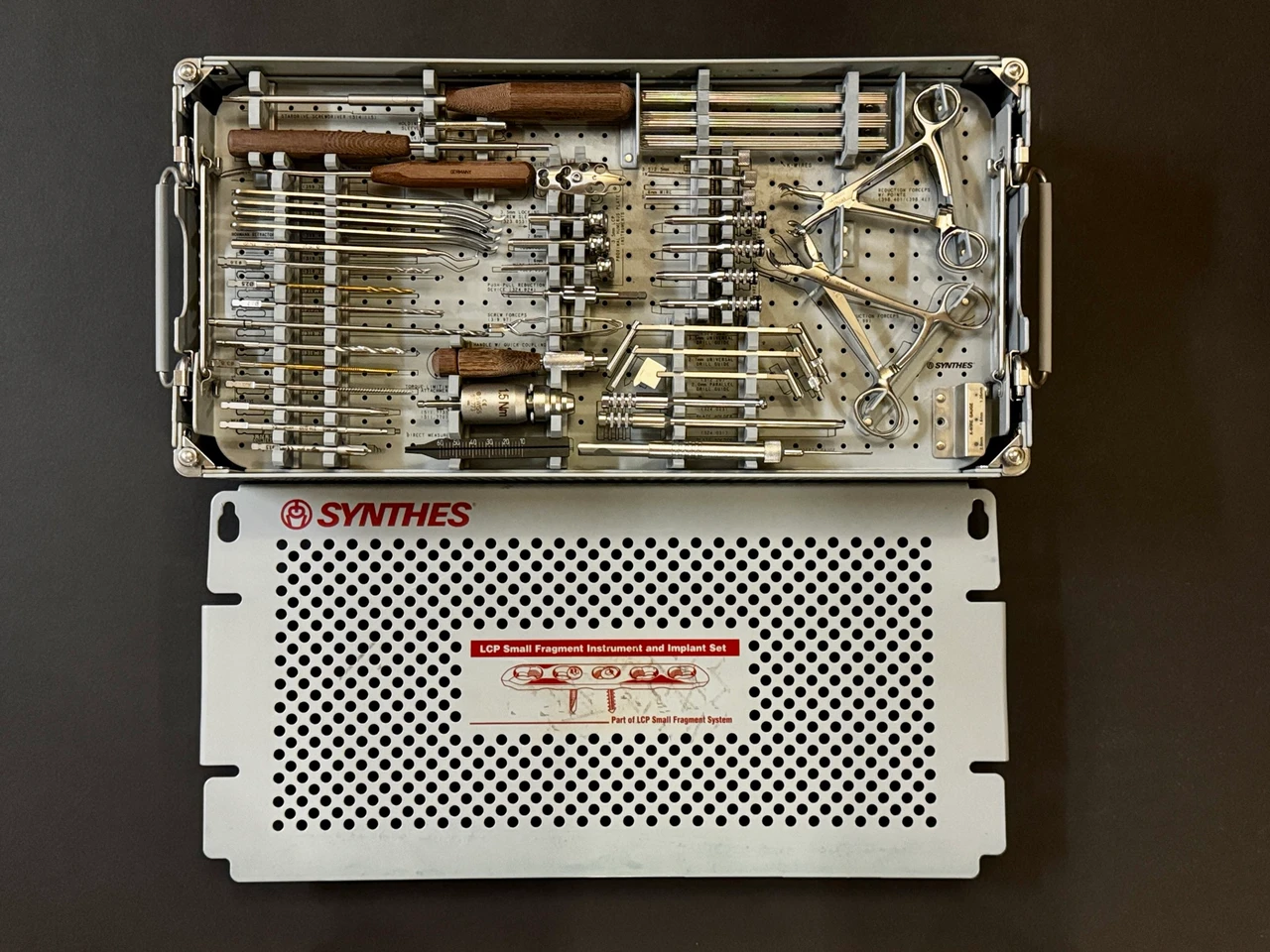

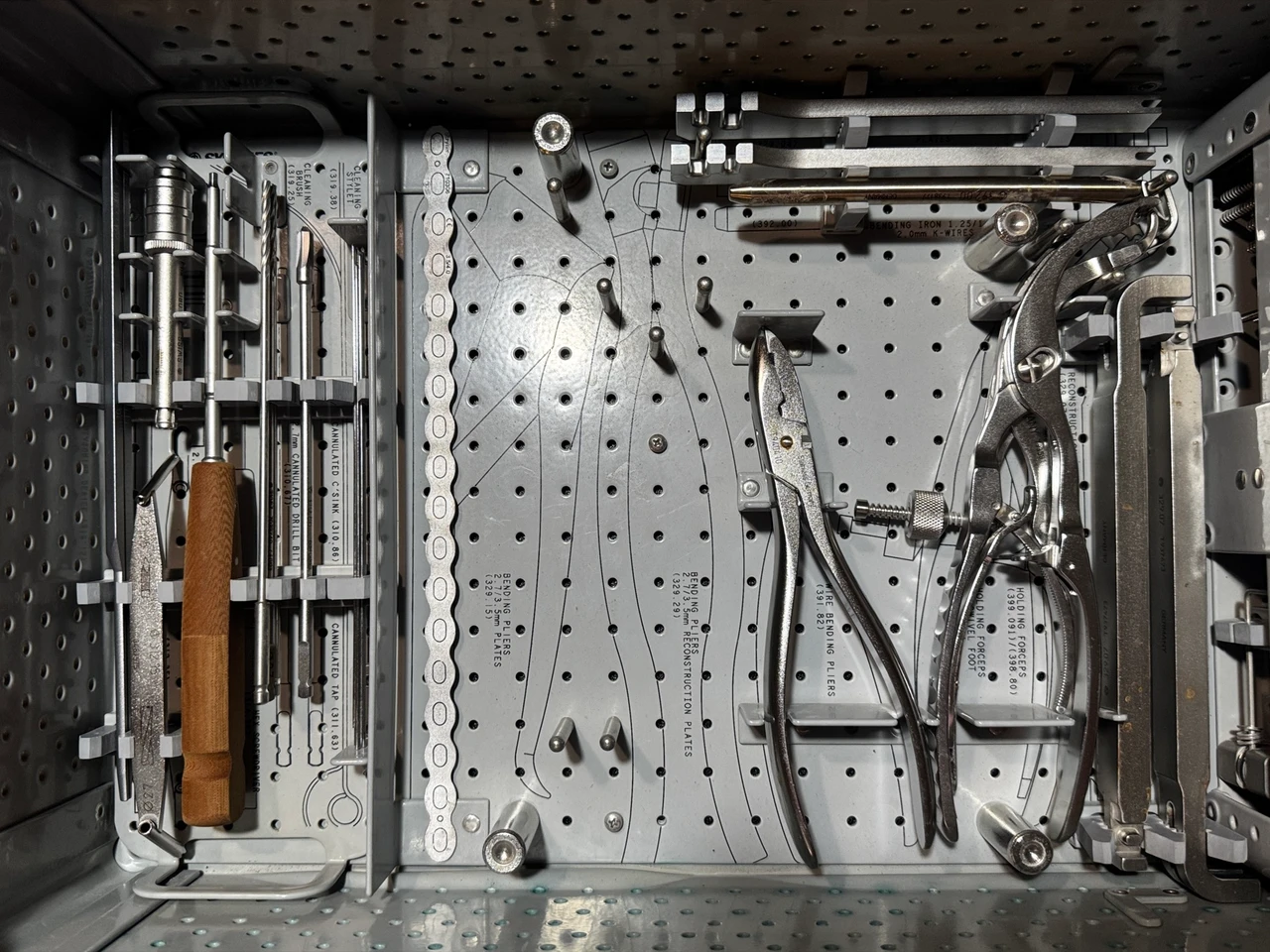

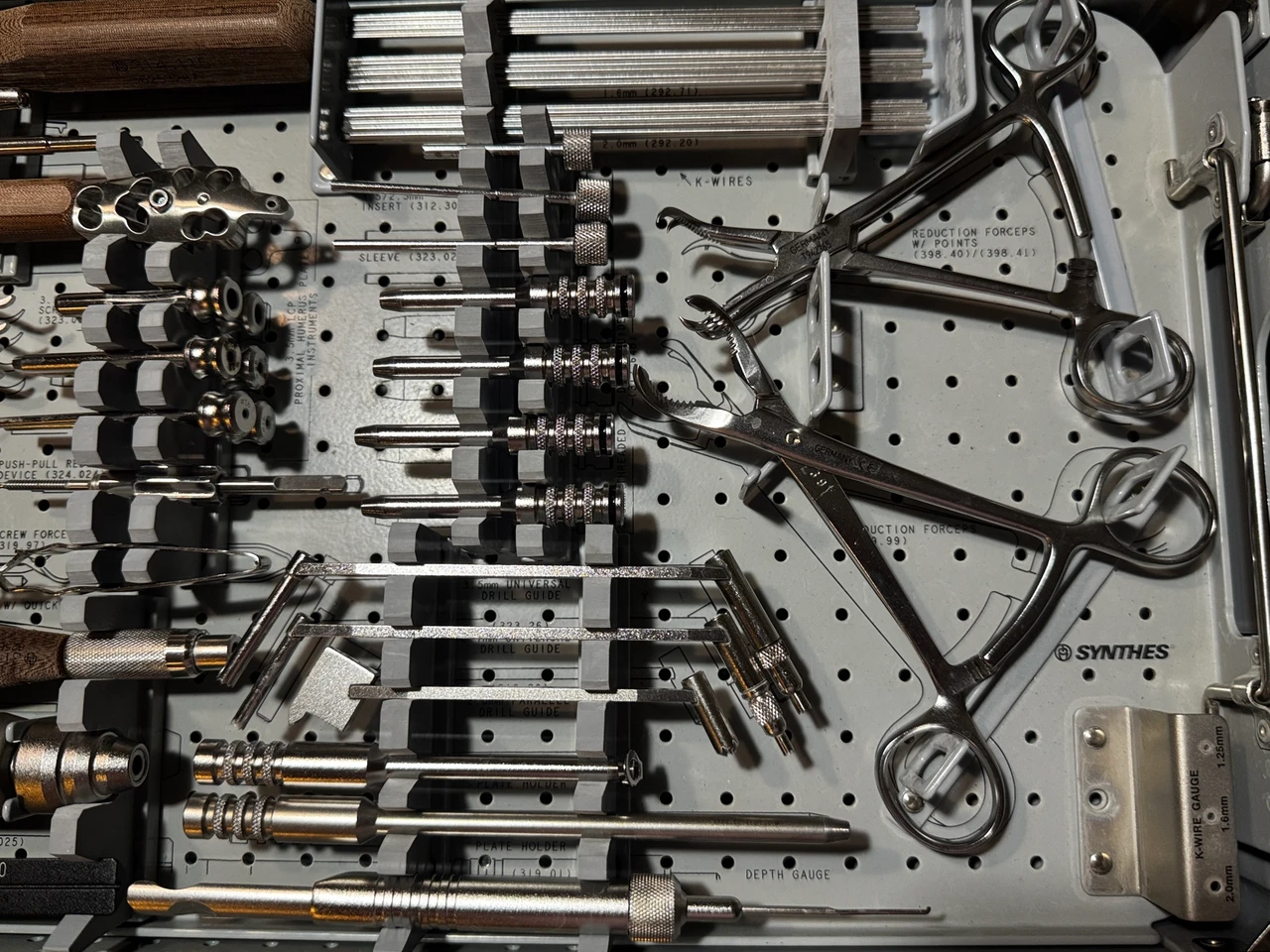

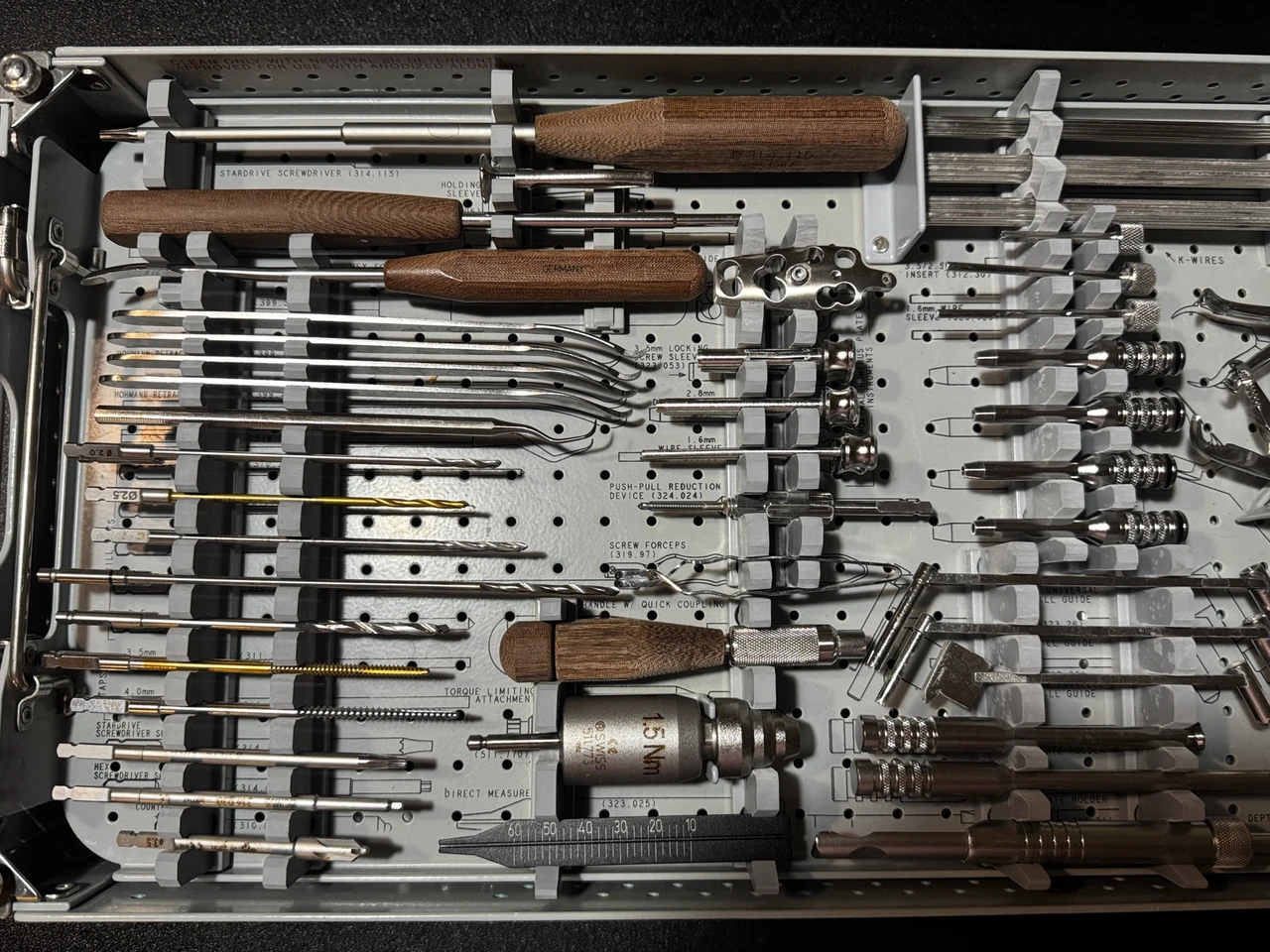

INSTRUMENTS INCLUDED
310.21 2.0 mm Drill Bit, quick coupling, 125 mm QTY 2
310.25 2.5 mm Drill Bit, quick coupling, 110 mm, gold QTY 2
310.288 2.8 mm Drill Bit, quick coupling, 165 mm QTY 2
310.35 3.5 mm Drill Bit, quick coupling, 110 mm QTY 2
310.89 Countersink, for 3.5 mm Cortex and 4.0 mm Cancellous Bone Screws QTY 1
311.32 Tap for 3.5 mm Cortex Screws, gold, 110 mm QTY 2
311.34 Tap for 4.0 mm Cancellous Bone Screws, 110 mm QTY 2
311.43 Handle, with quick coupling QTY 1
312.20 2.0 mm Parallel Drill Guide and Drill Sleeve QTY 1
312.30 3.5 mm/2.5 mm Insert Drill Sleeve QTY 1
312.648 2.8 mm Threaded Drill Guide QTY 4
314.02 Small Hexagonal Screwdriver with Holding Sleeve QTY 1
314.03 Small Hexagonal Screwdriver Shaft QTY 1
314.115 StarDrive Screwdriver, T15, self-retaining QTY 1
314.116 StarDrive Screwdriver Shaft, T15, self-retaining, quick coupling QTY 1
315.28 2.7 mm Three-Fluted Drill Bit, quick coupling, 125 mm QTY 2
319.01 Depth Gauge, for 2.7 mm and small screws QTY 1
319.39 Sharp Hook QTY 1
319.97 Screw Forceps QTY 1
323.023 1.6 mm Wire Sleeve QTY 2
323.025 Direct Measuring Device QTY 1
323.050 Insertion Guide, for 3.5 mm LCP Proximal Humerus Plate QTY 1
323.053 3.5 mm Locking Screw Sleeve, for 3.5 mm LCP Proximal Humerus Plate QTY 2
323.054 2.8 mm Drill Sleeve, for 3.5 mm LCP Proximal Humerus Plate QTY 2
323.055 1.6 mm Wire Sleeve, for 3.5 mm LCP Proximal Humerus Plate QTY 2
323.26 2.7 mm Universal Drill Guide QTY 1
323.36 3.5 mm Universal Drill Guide QTY 1
324.023 Threaded Plate Holder QTY 1
324.024 Push-Pull Reduction Drive QTY 1
324.031 Threaded Plate Holder, long QTY 1
329.04 Bending Iron, for 2.7 mm and 3.5 mm plates QTY 1 pair
329.05 Bending Iron, for 2.7 mm and 3.5 mm plates QTY 1 pair
329.07 Bending Iron, for 2.7 mm and 3.5 mm reconstruction plates QTY 2
329.820 Bending Template, 12 holes QTY 1
329.87 Bending Template, 7 holes QTY 1
329.89 Bending Template, 9 holes QTY 1
391.82 Wire-Bending Pliers QTY 1
392.00 Bending Iron, for 1.25 mm, 1.6 mm and 2.0 mm K-wires QTY 1
398.40 Reduction Forceps with points, narrow, ratchet QTY 2
398.811 Plate Holding Forceps with swivel foot, size 0 QTY 1
399.091 Bone Holding Forceps, soft ratchet QTY 1
399.19 Hohmann Retractor, 8 mm width, small, short narrow tip QTY 2
399.36 Periosteal Elevator, 6 mm width, curved blade, round edge QTY 1
399.49 Hohmann Retractor, 15 mm width, broad shank QTY 2
399.99 Reduction Forceps, with serrated jaw, ratchet QTY 1
511.773 Torque Limiting Attachment, 1.5 Nm, quick coupling QTY 1
INCLUDES 691-387 Small Fragment LCP Cannulated Instrument Tray
292.62 1.25 mm Threaded Guide Wire, 150 mm QTY 8
310.67 2.7 mm Cannulated Drill Bit, quick coupling, 160 mm QTY 3
310.86 Cannulated Countersink, for 3.5 mm and 4.0 mm cannulated screws QTY 1
312.35 2.7 mm/1.25 mm Double Drill Sleeve QTY 1
314.08 Holding Sleeve QTY 1
314.29 Cannulated 2.5 mm Hexagonal Screwdriver QTY 1
319.15 Cannulated Screw Measuring Device, for 3.5 mm and 4.0 mm cannulated screws QTY 1

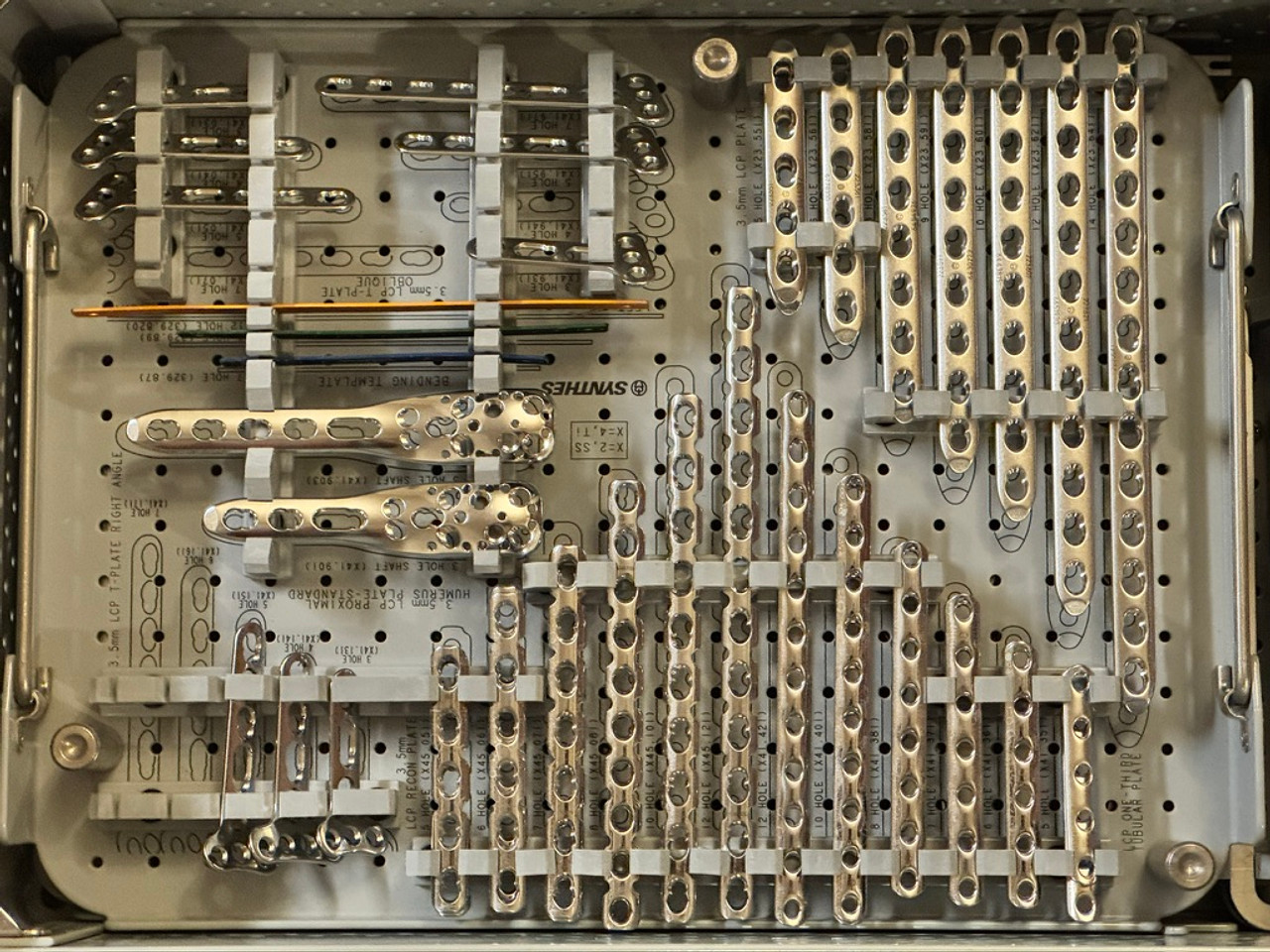

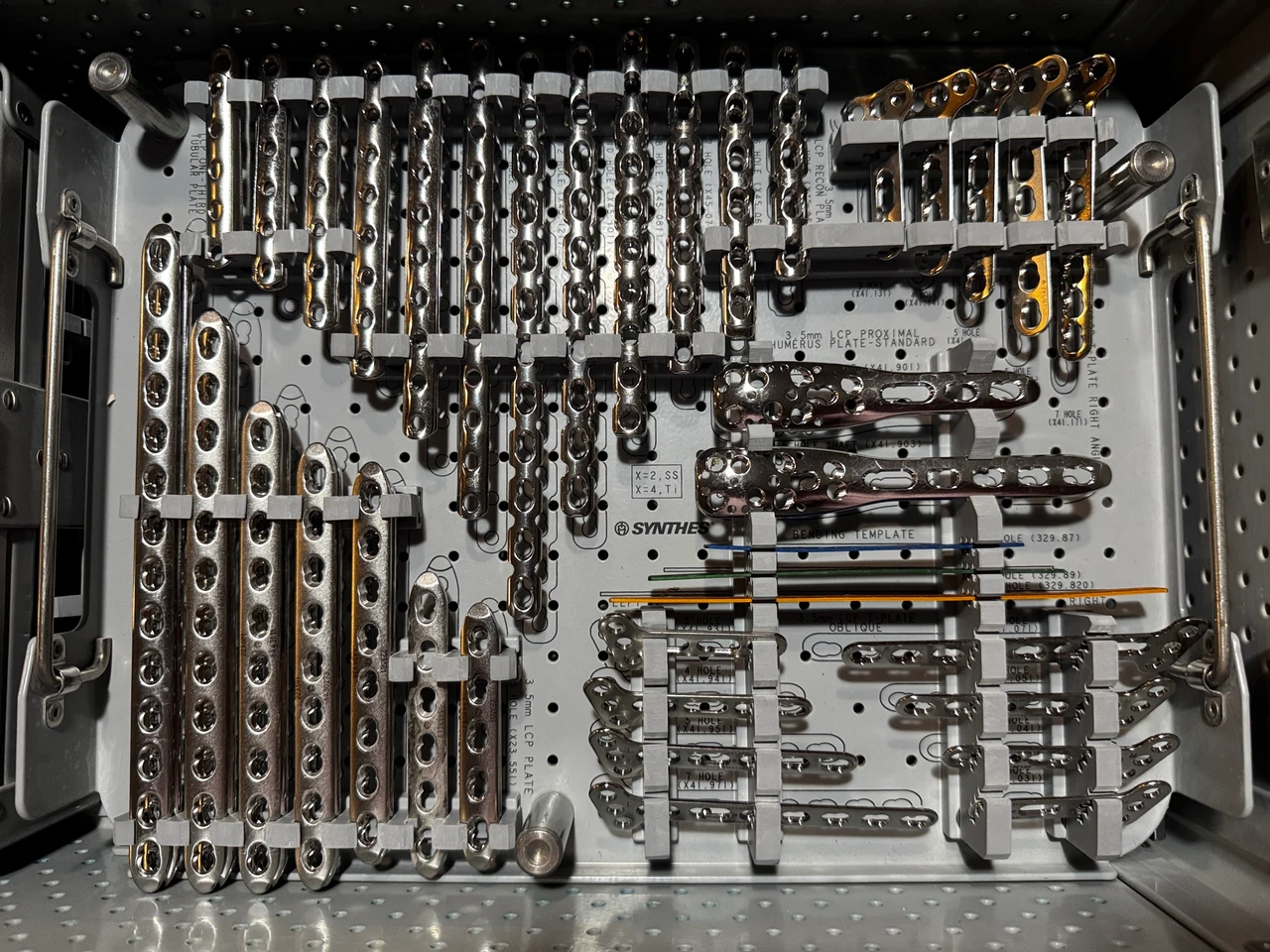

PLATES INCLUDED
223.551 3.5 mm LCP Plate, 5 holes, 72 mm QTY 2
223.561 3.5 mm LCP Plate, 6 holes, 85 mm QTY 1
223.581 3.5 mm LCP Plate, 8 holes, 111 mm QTY 2
223.591 3.5 mm LCP Plate, 9 holes, 124 mm QTY 2
223.601 3.5 mm LCP Plate, 10 holes, 137 mm QTY 2
223.621 3.5 mm LCP Plate, 12 holes, 163 mm QTY 2
223.641 3.5 mm LCP Plate, 14 holes, 189 mm QTY 2
241.031 3.5 mm LCP T-Plate, 3 holes head, oblique right, 3 holes shaft, 52 mm QTY 1
241.041 3.5 mm LCP T-Plate, 3 holes head, oblique right, 4 holes shaft, 63 mm QTY 1
241.051 3.5 mm LCP T-Plate, 3 holes head, oblique right, 5 holes shaft, 74 mm QTY 1
241.071 3.5 mm LCP T-Plate, 3 holes head, oblique right, 7 holes shaft, 96 mm QTY 1
241.931 3.5 mm LCP T-Plate, 3 holes head, oblique left, 3 holes shaft, 52 mm QTY 1
241.941 3.5 mm LCP T-Plate, 3 holes head, oblique left, 4 holes shaft, 63 mm QTY 1
241.951 3.5 mm LCP T-Plate, 3 holes head, oblique left, 5 holes shaft, 74 mm QTY 1
241.971 3.5 mm LCP T-Plate, 3 holes head, oblique left, 7 holes shaft, 96 mm QTY 1
241.131 3.5 mm LCP T-Plate, 3 holes head, right angle, 3 holes shaft, 50 mm QTY 1
241.151 3.5 mm LCP T-Plate, 3.5 mm LCP T-Plate, 5 holes head, right angle, 5 holes shaft, 67 mm QTY 1
241.171 3.5 mm LCP T-Plate, 3.5 mm LCP T-Plate, 7 holes head, right angle, 7 holes shaft, 87 mm QTY 1
241.141 3.5 mm LCP T-Plate, 4 holes head, right angle, 4 holes shaft, 56 mm QTY 1
241.161 3.5 mm LCP T-Plate, 4 holes head, right angle, 6 holes shaft, 78 mm QTY 1
241.351 LCP One-Third Tubular Plate, with collar, 5 holes, 57 mm QTY 2
241.361 LCP One-Third Tubular Plate, with collar, 6 holes, 69 mm QTY 2
241.371 LCP One-Third Tubular Plate, with collar, 7 holes, 81 mm QTY 2
241.381 LCP One-Third Tubular Plate, with collar, 8 holes, 93 mm QTY 1
241.401 LCP One-Third Tubular Plate, with collar, 10 holes, 117 mm QTY 1
241.421 LCP One-Third Tubular Plate, with collar, 12 holes, 141 mm QTY 1
241.901 3.5 mm LCP Proximal Humerus Plate, 6 holes head, 3 holes shaft, 90 mm QTY 1
241.903 3.5 mm LCP Proximal Humerus Plate, 6 holes head, 5 holes shaft, 114 mm QTY 1
245.051 3.5 mm LCP Reconstruction Plate, 5 holes, 70 mm QTY 2
245.061 3.5 mm LCP Reconstruction Plate, 6 holes, 84 mm QTY 2
245.071 3.5 mm LCP Reconstruction Plate, 7 holes, 98 mm QTY 2
245.081 3.5 mm LCP Reconstruction Plate, 8 holes, 112 mm QTY 2
245.101 3.5 mm LCP Reconstruction Plate, 10 holes, 140 mm QTY 1
245.121 3.5 mm LCP Reconstruction Plate, 12 holes, 168 mm QTY 1

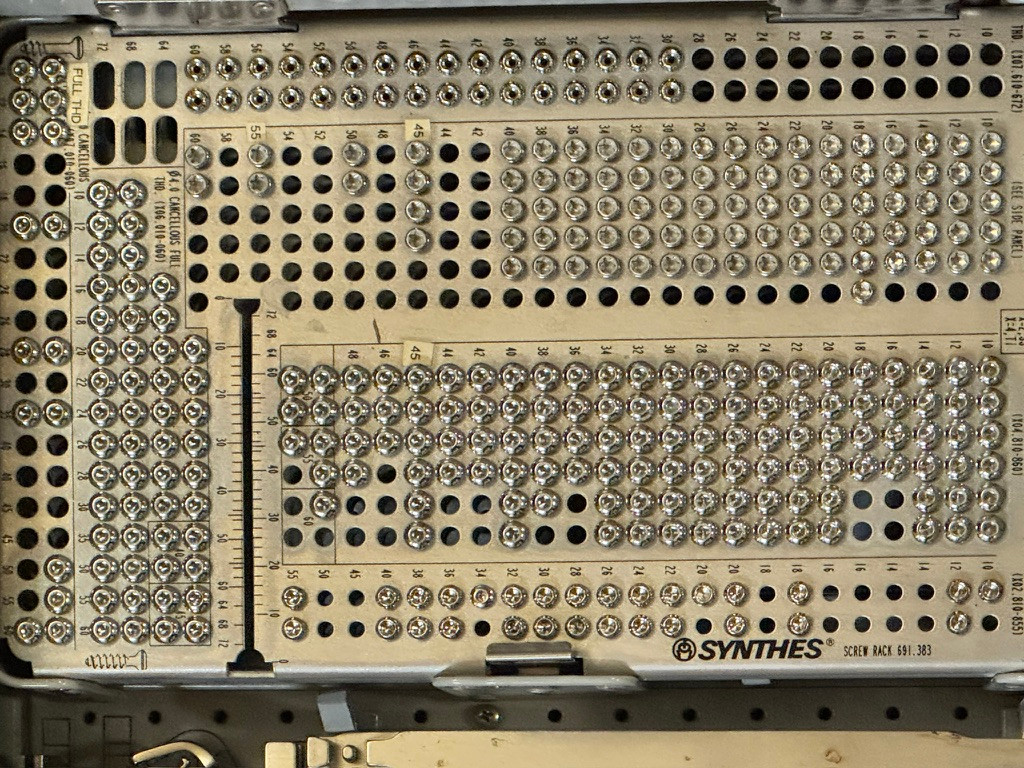

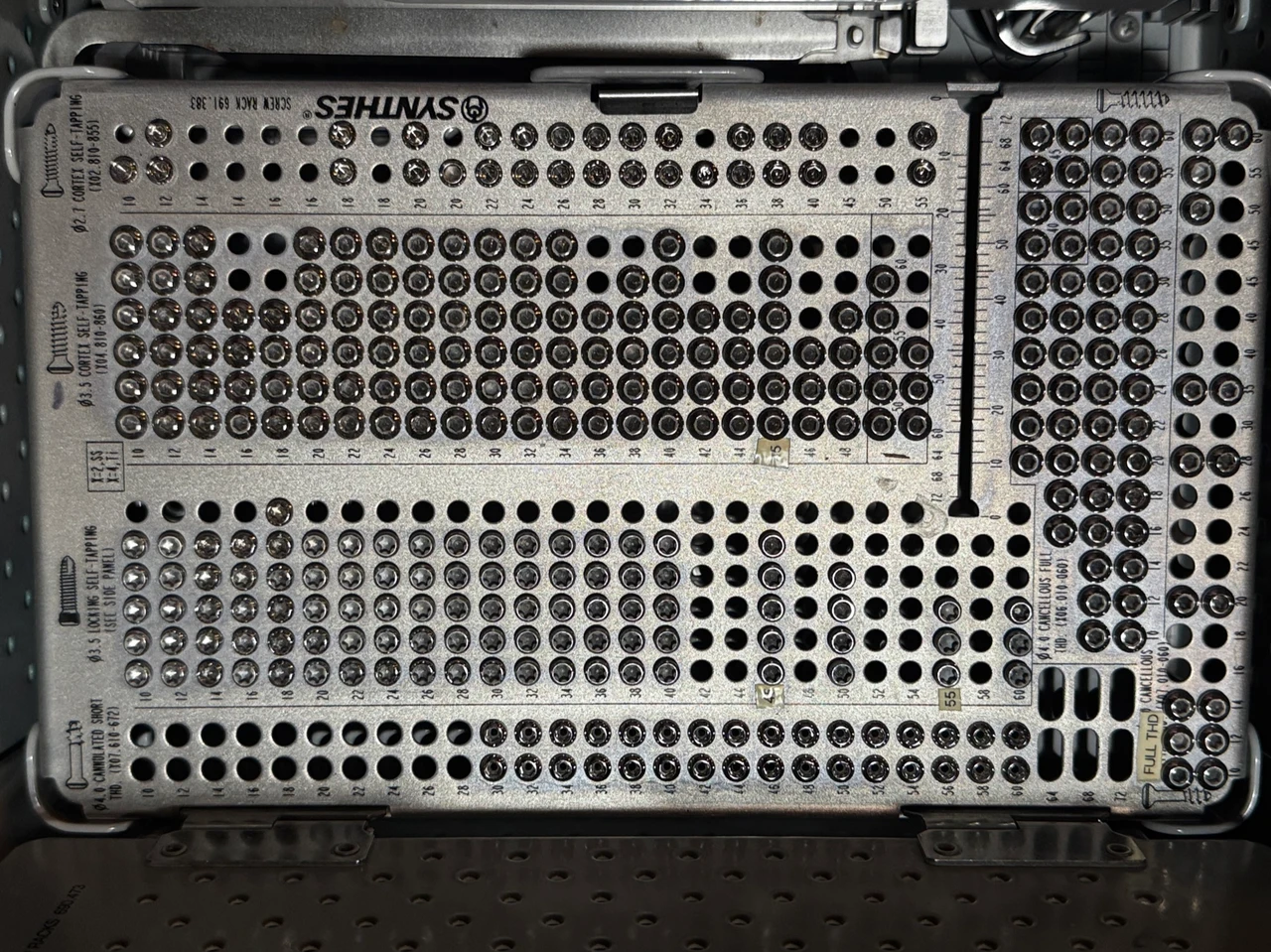

SCREWS INCLUDED
202.810-202.855 2.7 mm Cortex Screws, self-tapping, 10, 12,18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38 and 55 mm QTY 1 to 2 each
204.810-204.860 3.5 mm Cortex Screws, self-tapping, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40,42, 44, 45, 46, 48 and 50 mm QTY 4 to 6 each
204.810-204.860 3.5 mm Cortex Screws, self-tapping, 55 and 60 mm QTY 4 each
206.010-206.060 4.0 mm Cancellous Bone Screws, fully threaded, 10, 12, 22, 24, 26, 28, 30, 35, 40, 45, 50, 55 and 60 mm QTY 4 each 206.010-206.060 4.0 mm Cancellous Bone Screws, fully threaded, 10, 12, 14 , 20, 28 & 35 mm QTY 2 each 1207.610-207.672 4.0 mm Cannulated Screws, short threaded, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58 & 60mm QTY 2 each
212.101-212.124 3.5 mm Locking Screws, self-tapping, with StarDrive recess, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36 and 38 mm QTY 5 each
212.101-212.124 3.5 mm Locking Screws, self-tapping, with StarDrive recess, 40, 45, 50, 55 and 60 mm QTY 3 to 4 each
219.98 Washer, 7.0 mm, for 3.5 mm Cortex and 4.0 mm Cancellous Bone Screws QTY 4
K-WIRES
292.12 1.25 mm Kirschner Wires, 150 mm, trocar point QTY 6
292.20 2.0 mm Kirschner Wires, 150 mm, trocar point QTY 10
292.71 1.6 mm Kirschner Wires with thread, 150 mm, trocar point QTY 8
Mechanical Condition: Excellent
Cosmetic Condition: Excellent
Warranty: 6 Months (Covers OEM Defects)
