Product Description
Synthes 105.515 LCP Locking 2.4mm Distal Radius Implant and Instrument Set
INSTRUMENTS INCLUDED
310.19 2.0 mm Drill Bit, Quick Coupling, 100 mm QTY 2 *
310.509 1.8 mm Drill Bit with Depth Mark, Quick Coupling, 110 mm QTY 2
311.43 Handle with Quick Coupling QTY 1
314.02 Small Hexagonal Screwdriver with Holding Sleeve QTY 1
314.467 StarDrive Screwdriver Shaft, T8, 105 mm QTY 1
314.468 Holding Sleeve for 314.467 QTY 1
319.006 Depth Gauge for 2.0 mm and 2.4 mm Screws QTY 1
319.01 Depth Gauge for 2.7 mm Screws QTY 1
319.39 Sharp Hook QTY 1
323.029 Threaded LCP Drill Guide, 1.8 mm QTY 2
323.202 2.4 mm Universal Drill Guide QTY 1
323.26 2.7 mm Universal Drill Guide QTY 1
Stryker 64-20117 Bending Pliers QTY 2
324.084 1.25 mm K-Wire Insert for 323.029 QTY 1
329.922 Bending Pin QTY 2
398.41 Reduction Forceps with Points, Broad QTY 2
399.18 Hohmann Retractor, Small, 6 mm Width QTY 1
399.48 Periosteal Elevator, 3 mm, Curved Blade, Straight Edge QTY 1
399.481 Periosteal Elevator, 3 mm, Curved Blade, Round Edge QTY 1
03.110.007 Stardrive Screwdriver 2.4mm
2.4mm PLATES INCLUDED
242.458 LCP Volar Distal Radius Plate 5 Holes Head, 3 Holes Shaft, 48 mm, Right
242.459 LCP Volar Distal Radius Plate 5 Holes Head, 5 Holes Shaft, 66 mm, Right QTY 1-
242.461 LCP Volar Distal Radius Plate 5 Holes Head, 3 Holes Shaft, 48 mm, Left QTY 1 -
242.462 LCP Volar Distal Radius Plate 5 Holes Head, 5 Holes Shaft, 66 mm, Left QTY 1 -
242.464 LCP Volar Distal Radius Plate 4 Holes Head, 3 Holes Shaft, 47 mm, Right QTY 1 -
242.465 LCP Volar Distal Radius Plate 4 Holes Head, 5 Holes Shaft, 65 mm, Right QTY 1 -
242.468 LCP Volar Distal Radius Plate 4 Holes Head, 5 Holes Shaft, 65 mm, Left QTY 1 -
242.477 LCP Distal Radius T-Plate 3 Holes Head, 3 Holes Shaft, 40mm
242.478 LCP Distal Radius T-Plate 3 Holes Head, 4 Holes Shaft, 49mm
242.479 LCP Distal Radius Plate Straight 5 Holes, 48mm
242.491 LCP Distal Radius Plate Volar, Left, 5 Holes Head, 3 Holes Shaft 43mm
242.492 LCP Distal Radius Plate Volar, Left, 5 Holes Head, 5 Holes Shaft 61mm
242.493 LCP Distal Radius Plate Volar, Right, 5 Holes Head, 3 Holes Shaft 43mm
242.500 LCP Distal Radius L-Plate 2 Holes Head, -90°, 3 Holes Shaft, 40mm
242.501 LCP Distal Radius L-Plate 2 Holes Head, -90°, 4 Holes Shaft, 49mm
242.502 LCP Distal Radius L-Plate 2 Holes Head, 90°, 3 Holes Shaft, 40mm
242.503 LCP Distal Radius L-Plate 2 Holes Head, 90°, 4 Holes Shaft, 49mm
242.504 LCP Distal Radius l-Plate 3 Holes Head, 90°, 3 Holes Shaft 40mm
242.505 LCP Distal Radius l-Plate 3 Holes Head, 90°, 4 Holes Shaft 49mm
242.506 LCP Distal Radius l-Plate 3 Holes Head, -90°, 3 Holes Shaft 40mm
242.507 LCP Distal Radius l-Plate 3 Holes Head, -90°, 4 Holes Shaft 49mm
242.508 LCP Distal Radius l-Plate 3 Holes Head, 20°, 3 Holes Shaft 43mm
242.509 LCP Distal Radius l-Plate 3 Holes Head, 20°, 4 Holes Shaft 52mm
242.511 LCP Distal Radius l-Plate 3 Holes Head, -20°, 3 Holes Shaft 43mm
242.504 LCP Distal Radius l-Plate 3 Holes Head, -20°, 4 Holes Shaft 52mm
SCREWS & K-WIRES INCLUDED
201-756 - 201.780 2.4mm Self Tapping Cortex Screws T8 Stardrive: 6, 8, 10, 12 ,14, 16, 18, 20, 22, 24, 26, 28 and 30mm
212.806 - 212.830 2.4mm Self Tapping, Locking Screws, Stardrive Recess: 6, 8, 10, 12 ,14, 16, 18, 20, 22, 24, 26, 28 and 30mm
202.810 - 202.830 2.7mm Self Tapping Cortex Screws: 10, 12, 14, 16, 18, 20, 22, 24, 27, 28 and 30mm
292.12 1.25mm Kirshner Wire, 150mm, Trocar Point QTY 6
292.16 1.6mm Kirshner Wire, 150mm, Trocar Point QTY 10

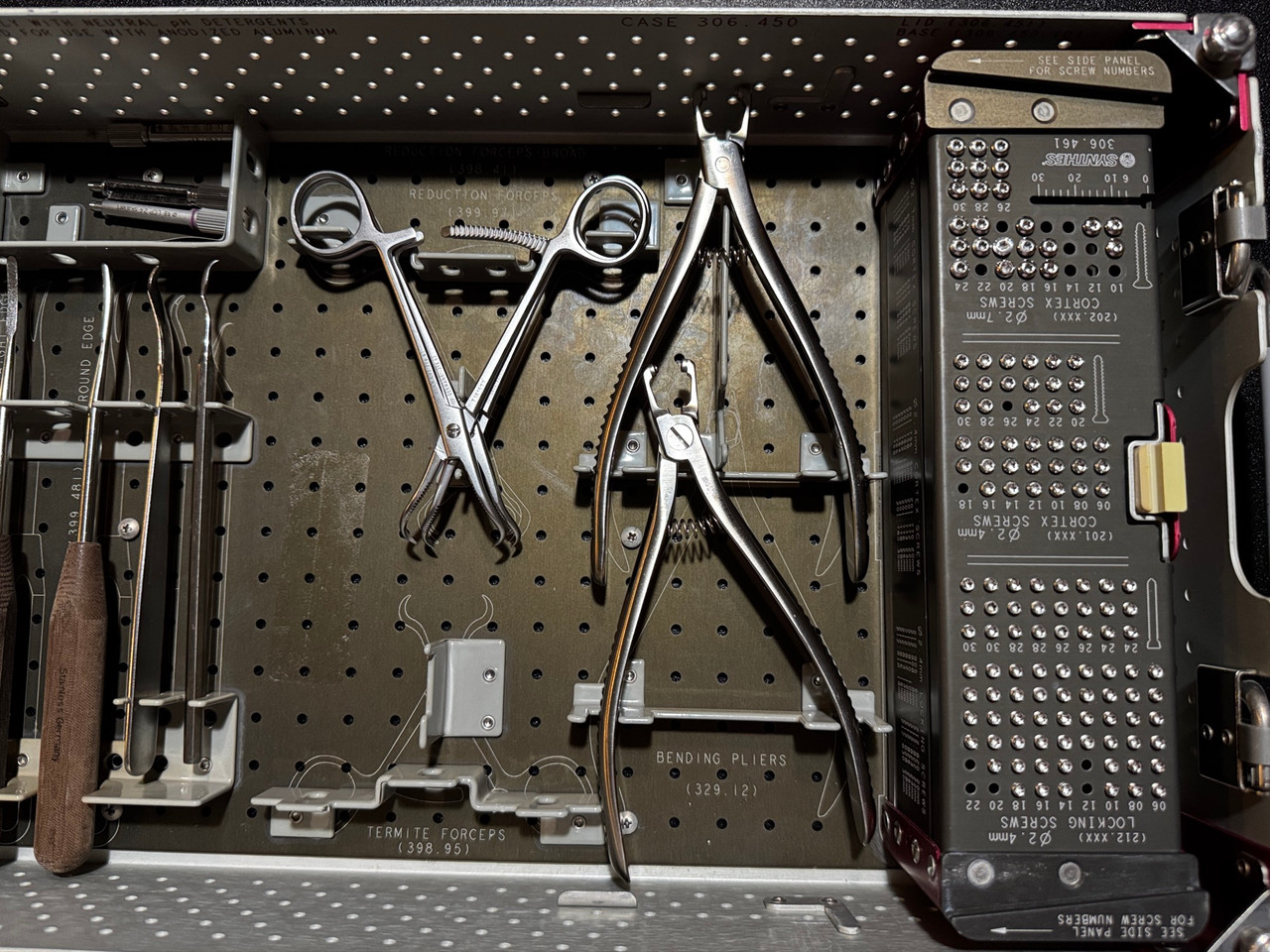

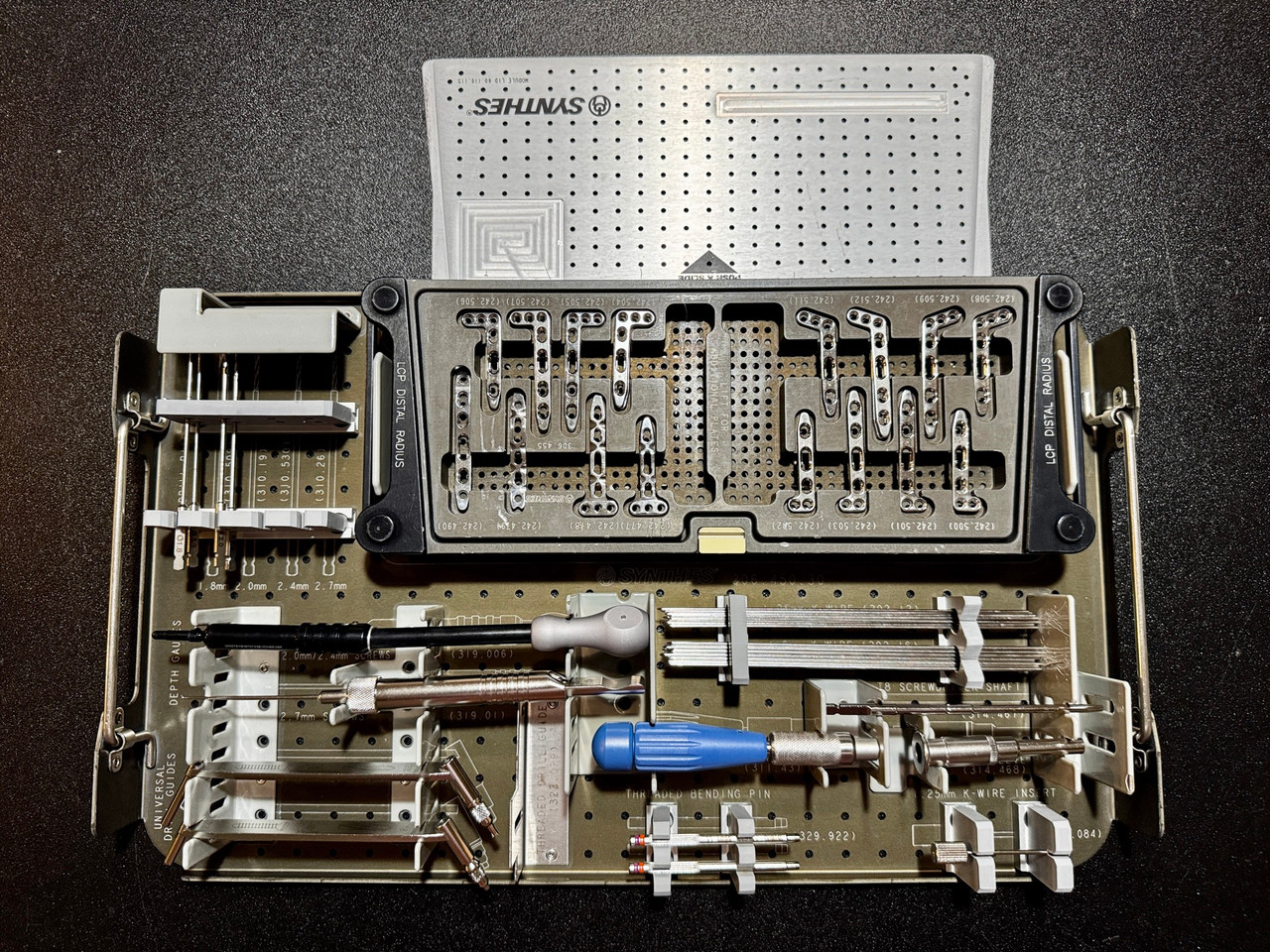

*Everything shown in photos is included
Mechanical Condition: Good
Cosmetic Condition: Good
Warranty: 6 Months (Covers OEM Defects)
“The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.”
